CNC Gearbox by RetroArms

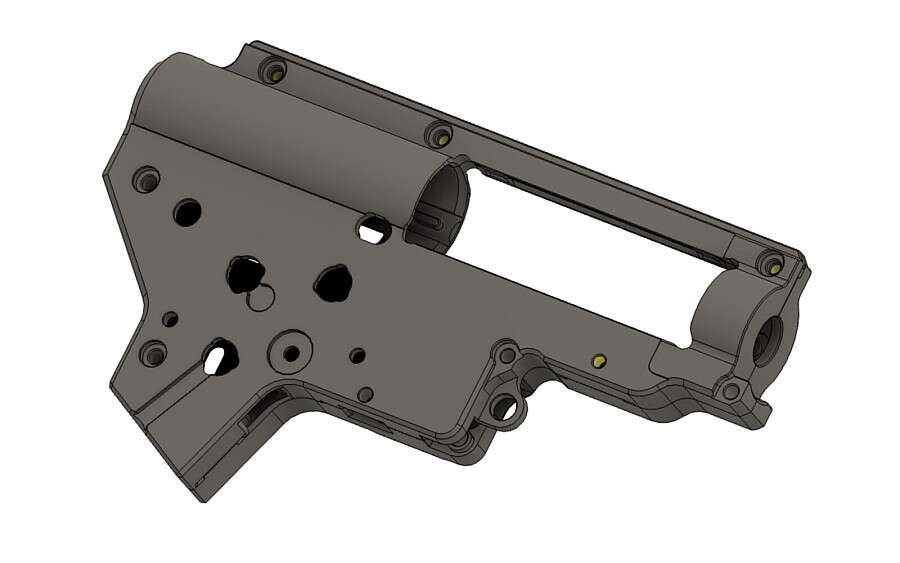

CNC Gearbox V2 QSC is designed for AR15, M16, MP5, and other airsoft guns using the V2 gearbox. This model is made from aerospace-grade aluminum EN AW 7075 T651, which offers higher strength than standard construction steel, significantly outperforming traditional zinc alloy gearboxes. The main advantage is the Quick Spring Change (QSC) system, which allows spring replacement with just a hex key turn without fully disassembling the gearbox. During installation, the spring guide must be properly secured to prevent misalignment and component damage (ideally combined with the RetroArms QSC screw, sold separately).CNC machining ensures precise dimensions and maximum compatibility with Tokyo Marui standard internal parts. Installation requires expert knowledge due to differences between airsoft replica manufacturers. The CNC gearbox is not just for increasing power with the strongest springs but primarily for improving durability and reliability, even with standard springs or in DSG/TSG high-speed setups.
Improvements in the 2025 Version
More precise motor gear alignmentSlightly adjusted motor and spur gear positioning for improved motor engagement.
Extended nozzle movementThe tappet plate allows for 0.3 mm more forward movement, ensuring better BB feeding and compatibility with shorter nozzles.
Improved cylinder seatingThe seating is redesigned to have 8 contact points instead of a full-contact surface, simplifying installation and compatibility with different manufacturers.
Optimized bearing fit (ANTIROT system)Added glue pockets or ANTIROT bearings to improve bearing stability during installation.
Increased front-end radiusProvides greater durability and reduces the risk of cracking under strong spring loads.
Redesigned piston guide railsImproved geometry extends the lifespan of both the piston and gearbox, increasing overall reliability.
Enhanced fire selector railReworked selector plate rail allows for broader compatibility across various brands.
Inspection holes for pis..
